Hdd Well Drilling 20000kn Pneumatic Pipe Ramming 3400mm Host Length

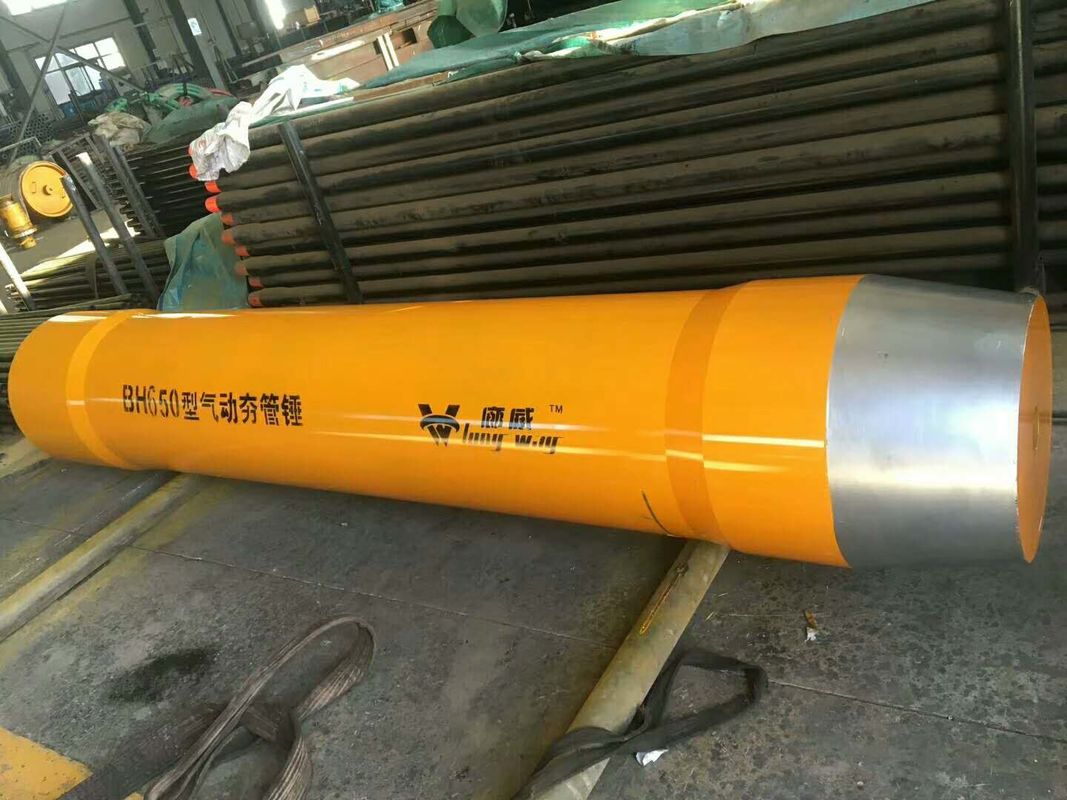

Gambar besar : Hdd Well Drilling 20000kn Pneumatic Pipe Ramming 3400mm Host Length

Detail produk:

Tempat asal:	Cina
Nama merek:	Longway
Sertifikasi:	ISO9001

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Menurut kebutuhan klien
Waktu pengiriman:	20-30 hari kerja, yang akan disesuaikan dengan produk dan inventaris yang berbeda
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	20-30 hari kerja, yang akan disesuaikan dengan produk dan inventaris yang berbeda

Kontak

Hdd Well Drilling 20000kn Pneumatic Pipe Ramming 3400mm Host Length

Deskripsi

Nama Produk:	Palu Serudukan Pipa Pneumatik	Industri yang Berlaku:	Energi & Pertambangan
Jenis:	Menabrak palu	Tipe Mesin:	Peralatan pengeboran
Bahan:	baja karbon	Jenis Pemrosesan:	Memotong / Membuang
Menggunakan:	Pengeboran dengan baik	model:	BH610
Diameter luar tuan rumah (mm):	610/620	Panjang tuan rumah (mm):	3400
Berat host (kg):	5100	Konsumsi udara (m3/mnt):	20-40
Tekanan Udara (Mpa):	0,4-0,7	Dampak maksimum instan (kN):	20.000
Diameter peletakan pipa yang berlaku (mm):	529-1800	Diameter peletakan pipa standar (mm):	820.920.1020
Menyoroti:	20000kn Pneumatic Pipe Ramming , Pneumatic Pipe Ramming L3400mm

Pneumatic Pipe Ramming Hammer For Hdd Well Drilling

Product Description

The BAIWEI pneumatic pipe rammer attaches to the back of steel pipes or casings and hammers them into the ground. Pipe can be driven as one continuous run or in sections depending on the space available at the insertion site. As the pipe rammer pushes the pipe or casing through the soil, rocks and other obstacles are “swallowed up.” Spoil is removed by using compressed air and/or water, augers, or skid steers on larger diameter casings.

Model	Host outer diameter (mm)	Host length (mm)	Host weight (kg)	Air consumption (m3/min)	Air pressure (MPa)	Instant maximum impact (kN)	Applicable pipe laying diameter (mm)	Standard pipe laying diameter (mm)
BH190S	186/194	1320	160	2-6	0.4-0.7	1500	89-273	108,159,219
BH260	260/265	1390	320	3-8	0.4-0.7	2600	159-426	273,325,426
BH300	290/300	2100	750	4-11	0.4-0.7	4500	219-630	325,426,529
BH350	350/365	2400	1200	6~17	0.4-0.7	6000	273-Φ820	426,529,630
BH420	415/425	2800	1950	9-21	0.4-0.7	8000	325-1200	426,529,630
BH510	510/520	3200	3400	12-28	0.4-0.7	12000	426~1500	630,720,820
BH610	610/620	3400	5100	20-40	0.4-0.7	20000	529-1800	820,920,1020
BH650	620/650	3600	5500	20-50	0.4-0.9	25000	529~2200	820,920,1020
BH700	700/710	3680	7100	28-60	0.4-0.7	28000	630-2500	1020,1120,1220

Advantage

Anvil after clamping
The back anvil is the mark of BAIWEI perforation tool design. The clamping load provided by this function is 200% higher than that of competing products, making it the safest component on the market.

Push chuck
The BAIWEI tamper tool can be set into a conical locking chuck, thereby reducing the time for setting up and disassembly. The chuck can be fully engaged with the steel housing by 6 inches (152 mm), thereby firmly locking the tip of the knife on the housing, eliminating the need for a support frame, and reducing the opening of the sleeve, thereby saving working time.

Collet jack
For larger size collets, BAIWEI provides collet lifters, which can easily move, load and unload heavy collets on site.

Accessories
BAIWEI provides a wide range of ramming accessories, such as lubrication systems, seal kits, balanced collet lifters, pipe pigs and plunger sleeves. All these are designed to make your next job more efficient.

Hdd Well Drilling 20000kn Pneumatic Pipe Ramming 3400mm Host Length 0

Our Services

1. The drill pipe is strictly in accordance with API ISO9001 standard

2. If you find quality problems within one month after returning the package.

3. All fulfill obligations and responsibilities in strict accordance with the contract

4. 24 hours online customer service, please feel free to contact us.
