Pneumatic Hammer Water Well DTH Hammer Water Well Deep Hole Rotary Pneumatic Drilling DTH Hammer
Product Description
BAIWEI pneumatic tamping tools are the industry leader in reliability and ease of maintenance. Our tools are designed to handle the toughest compact projects easily and brilliantly, and have features not found in competitive models. We offer 11 models, ranging from 4" to 34" (102 mm to 860 mm), and can be installed with chassis from 4" to 180" (102 mm to 4,570 mm). Air reversal All HammerHead tamper tools larger than 7 inches (180 mm) have a patented and reliable true air reversal function, without internal mechanism, the reverse function can be controlled on the ground, thus simplifying the push-type clamp The work of removing the knife on the head.
| Model |
Host outer diameter (mm) |
Host length (mm) |
Host weight (kg) |
Air consumption (m3/min) |
Air pressure (MPa) |
Instant maximum impact (kN) |
Applicable pipe laying diameter (mm) |
Standard pipe laying diameter (mm) |
| BH190S |
186/194 |
1320 |
160 |
2-6 |
0.4-0.7 |
1500 |
89-273 |
108,159,219 |
| BH260 |
260/265 |
1390 |
320 |
3-8 |
0.4-0.7 |
2600 |
159-426 |
273,325,426 |
| BH300 |
290/300 |
2100 |
750 |
4-11 |
0.4-0.7 |
4500 |
219-630 |
325,426,529 |
| BH350 |
350/365 |
2400 |
1200 |
6~17 |
0.4-0.7 |
6000 |
273-Φ820 |
426,529,630 |
| BH420 |
415/425 |
2800 |
1950 |
9-21 |
0.4-0.7 |
8000 |
325-1200 |
426,529,630 |
| BH510 |
510/520 |
3200 |
3400 |
12-28 |
0.4-0.7 |
12000 |
426~1500 |
630,720,820 |
| BH610 |
610/620 |
3400 |
5100 |
20-40 |
0.4-0.7 |
20000 |
529-1800 |
820,920,1020 |
| BH650 |
620/650 |
3600 |
5500 |
20-50 |
0.4-0.9 |
25000 |
529~2200 |
820,920,1020 |

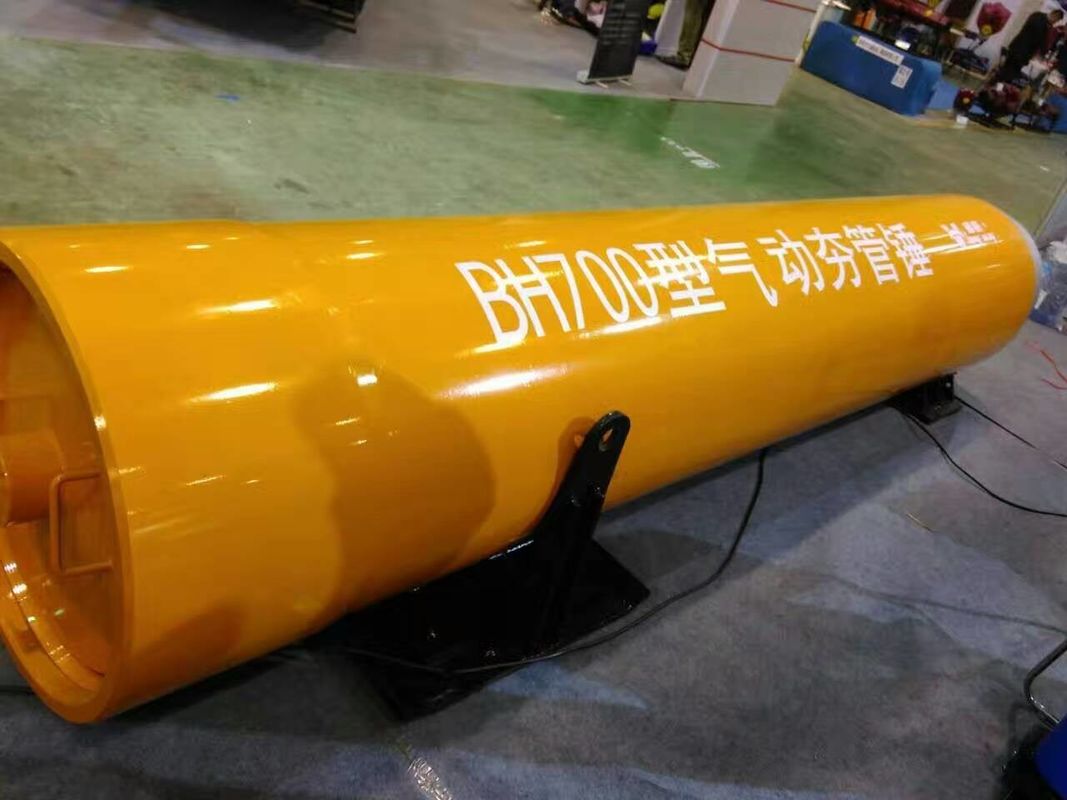

| BH700 |
700/710 |
3680 |
7100 |
28-60 |
0.4-0.7 |
28000 |
630-2500 |
1020,1120,1220 |
Advantage
Push chuck
The BAIWEI tamper tool can be set into a conical locking chuck, thereby reducing the time for setting up and disassembly. The chuck can be fully engaged with the steel housing by 6 inches (152 mm), thereby firmly locking the tip of the knife on the housing, eliminating the need for a support frame, and reducing the opening of the sleeve, thereby saving working time.
Collet jack
For larger size collets, BAIWEI provides collet lifters, which can easily move, load and unload heavy collets on site.
Accessories
BAIWEI provides a wide range of ramming accessories, such as lubrication systems, seal kits, balanced collet lifters, pipe pigs and plunger sleeves. All these are designed to make your next job more efficient.
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
