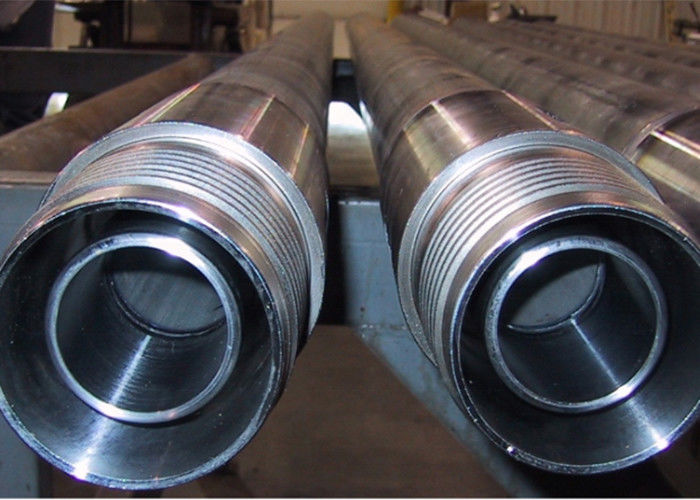

102mm Double Wall Drill Pipe 4" Remet Reverse Circulation

102mm Double Wall Drill Pipe 4" Remet Reverse Circulation
102mm Double Wall Drill Pipe 4" Remet Reverse Circulation 102mm Double Wall Drill Pipe 4" Remet Reverse Circulation

Gambar besar :  102mm Double Wall Drill Pipe 4" Remet Reverse Circulation

Detail produk:
Tempat asal: Cina
Nama merek: Longway
Sertifikasi: ISO9001
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: Bisa dinegosiasikan
Kemasan rincian: Menurut kebutuhan klien
Waktu pengiriman: 20-30 hari kerja, yang akan disesuaikan dengan produk dan inventaris yang berbeda
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 20-30 hari kerja, yang akan disesuaikan dengan produk dan inventaris yang berbeda

102mm Double Wall Drill Pipe 4" Remet Reverse Circulation

Deskripsi
nama: Pipa Bor Dinding Ganda Jenis: Pipa Bor
Warna: Meminta Keuntungan: Kualitas tinggi dan harga pabrik
model: WB114/52 OD tabung lainnya (mm): 102
Diameter sambungan lainnya (mm): 41 Dianeter luar sambungan (mm): 103
Panjang efektif (m): 3 / 6
Menyoroti:

102mm reverse circulation drill pipe

,

102mm double wall drill pipe

,

double wall drill pipe reverse circulation

High quality double-wall drill rod/ 102mm 4" Remet reverse circulation drill rod




Product Description:

The high-pressure air and the gas pipe are transported to somewhere in the well. The high-pressure air and liquid are injected into the pipe through the mixer. Because the density of the mixed liquid is lower than that of the flushing liquid, the pressure difference between the pipe and the sample pipe causes the mixed gas and liquid to flow in the liquid. Under the action of the column pressure, it flows upward rapidly, and the cuttings particles are continuously brought out from the bottom of the hole to the ground.



Double wall drill pipe


Type O.D.of the outer tube (mm) I.D.of the inner tube (mm) Outer dianeter of joint (mm) Type of threads Effective length (m)
WK76/32 76 32 78 3" Remet 3
WK102/41 102 41 103 4" Remet 3 , 6
WK114/52 114.3 52 116 4 1/2" Remet 3 , 6
WK114/38 114.3 38 114.3 4 1/2" Metzke 3 , 6
WK114/50 114.3 50 114.3 4 1/2" Remet 3 , 6
WP50/20 50 20 50   1 , 1.5
WP73/35 73 35 73   1 , 1.5
WP89/40 89 40 89   1 , 1.5



Advantage

Our reverse circulation drill pipes and drill pipes consist of hardened alloy steel drill pipe joints, heavy-duty seamless drill pipes and high tensile and wear-resistant inner pipes. With our years of experience in designing and manufacturing tough and wear-resistant RC drill pipes, all aspects of material and production management have been optimized. The result is a high-quality reverse circulation drill pipe that enables your RC rig to be produced efficiently day after day.



102mm Double Wall Drill Pipe 4" Remet Reverse Circulation 0



FAQ


Q: Are you trading company or manufacturer ?
A: We are factory.



Q: How long is your delivery time?
A: Generally it is 7-30 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample need to pay the cost of products and freight.



Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
