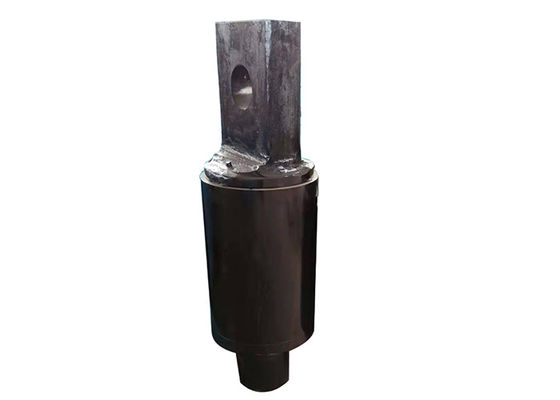

50T 210mm OD. Carbon Steel Drill Pipe Swivel / Drilling Rig Components

Gambar besar : 50T 210mm OD. Carbon Steel Drill Pipe Swivel / Drilling Rig Components

Detail produk:

Tempat asal:	Cina
Nama merek:	Longway
Sertifikasi:	ISO9001

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	dapat dinegosiasikan
Kemasan rincian:	Menurut kebutuhan klien
Waktu pengiriman:	20-30 hari kerja, yang akan disesuaikan dengan produk dan inventaris yang berbeda
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	20-30 hari kerja, yang akan disesuaikan dengan produk dan inventaris yang berbeda

Kontak

50T 210mm OD. Carbon Steel Drill Pipe Swivel / Drilling Rig Components

Deskripsi

Nama Produk:	Putar Pipa Bor	Tipe Mesin:	Alat Pengeboran
Bahan:	Baja Mangan Tinggi / Baja Karbon, Baja Tahan Karat	Jenis Pemrosesan:	pengecoran
Menggunakan:	Pengeboran dengan baik	intensitas tegangan:	100-5000KN
Warna:	Hitam / Seperti yang dirancang untuk pelanggan	Industri yang Berlaku:	Energi & Pertambangan
UKURAN:	B/N/H/P WL atau kustom	Jajaran Batuan yang Cocok:	Lembut, Keras Tengah, Hard Rock
Jenis:	Putar Pipa Bor
Menyoroti:	50T Drill Pipe Swivel , 210mm Drill Pipe Swivel , 210mm Drilling Rig Components

High Quality Drilling Rig Swivel Head With Kelly Bar Spinner

Product Description

Our rotary joints are wear-resistant and weigh from 10 tons to 100 tons. All U-shaped clamps, pull rings and threaded connection styles are available.
Make sure to keep the swivel clean and lubricated, and never exceed the rated pushback capability.

Type	Traction end connection mode	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	kg
10T Swivel Series	Binaural	28	99	317	28	33	10.5
15T Swivel Series	Binaural	32	109	360	32	38	19
18T Swivel Series	Binaural	32	136	352	30	35	20.5
20T Swivel Series	Binaural	36	146	415	36	44	26.5
25T Swivel Series	Binaural	38	156	433	38	42	29
30T Swivel Series	Binaural	39	166	477	40	50	41
40T Swivel Series	Binaural	42	192	543	48	60	70
50T Swivel Series	Binaural	61	210	571	59	75	100

		A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	kg
50T Swivel Series	NC31	60	210	571	60	75	100
60T Swivel Series	NC38	65	234	672	65	90	125
80T Swivel Series	NC46	65	244	697	65	90	175
100T Swivel Series	NC50	85	270	821	84	108	240
150T Swivel Series	NC50	100	314	904	102	135	330
200T Swivel Series	NC50,5-1-2FH	110	340	1177	118	150	415
300T Swivel Series	NC50,5-1-2FH	125	390	1282	122	173	800
400T Swivel Series	6-5-8FH	150	480	1530	150	216	940
500T Swivel Series	6-5-8FH	170	570	1651	192	248	2010

Features

The characteristics of "BAIWEI" drill rods

Two force regions

The threads of the non-dig drill pipe produced in the company have two Force regions. Such structure is designed to reduce the resistance that A drill faces during the construction process. The pipes are designed to handle high torque while retaining a large inside Diameter for superior drilling fluid flow so that the threads will not deform.

Optimal design

Drill rods through the dispersion of equal strength And stress optimal design, can give full play to the Potential of drill material.

Forged connector

Connector material had been forged, that have Improved material density, changed the fibrous Texture of the material, so that the general mechanical Properties of the material have been more improved Nitride, phosphide or copper plating processing Nitride, phosphide or copper plate processing to the rod ends Have ensured thread anti-corrosion, anti-bonding, and improved Joint surface fatigue resistance.

Upsetting & thicking

Upsetting & thicking to the rods have improved The metallurgical structure and enhanced the Impact toughness, that have ensured comprehensive Mechanical properties and the friction weld seals Not be broken.

FAQ

Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).

Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.

Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.

Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.

Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
